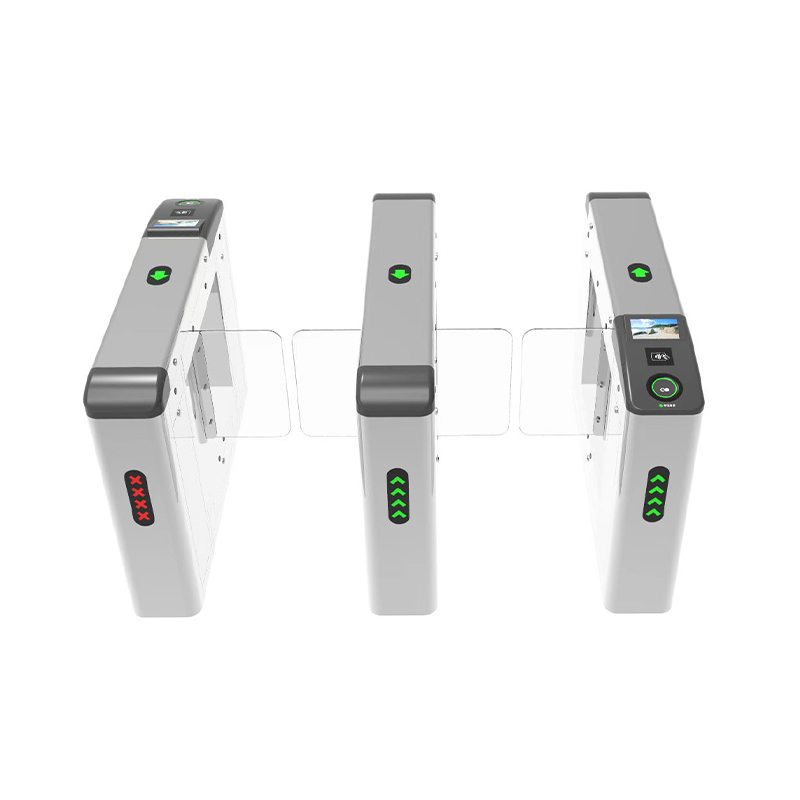

Customized Palm-Swipe Gate

Deke palm-swipe gate supports IC card, palm-swipe recognition, QR code, ID card, person-document comparison, card swallowing system, ticket checking system, check-in system, and fee deduction system.

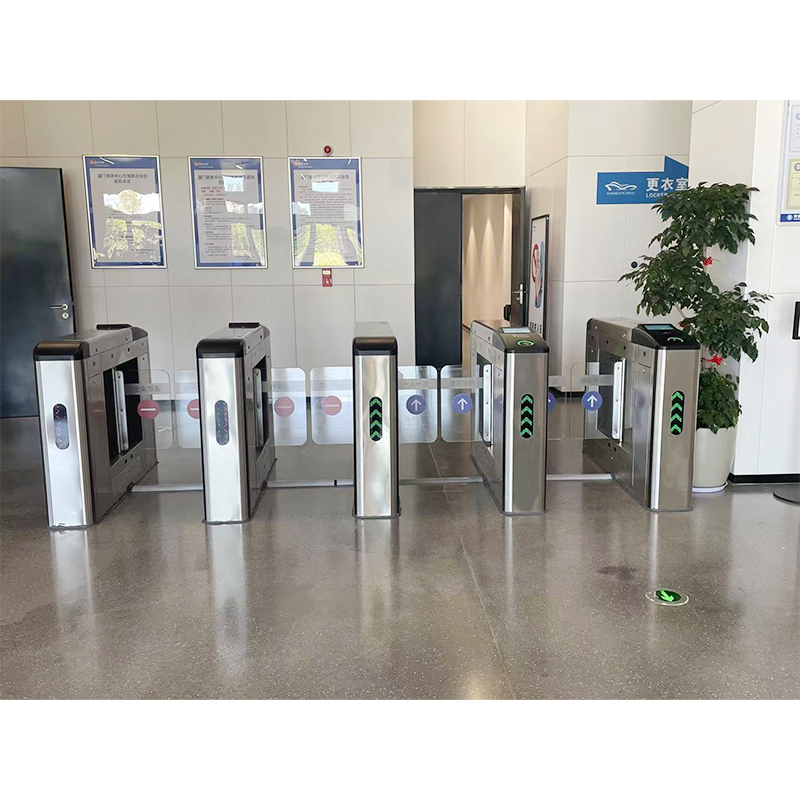

Applicable to: swimming pools, water parks, basketball courts, gyms, etc.

Consult

Features
Technical Indicators

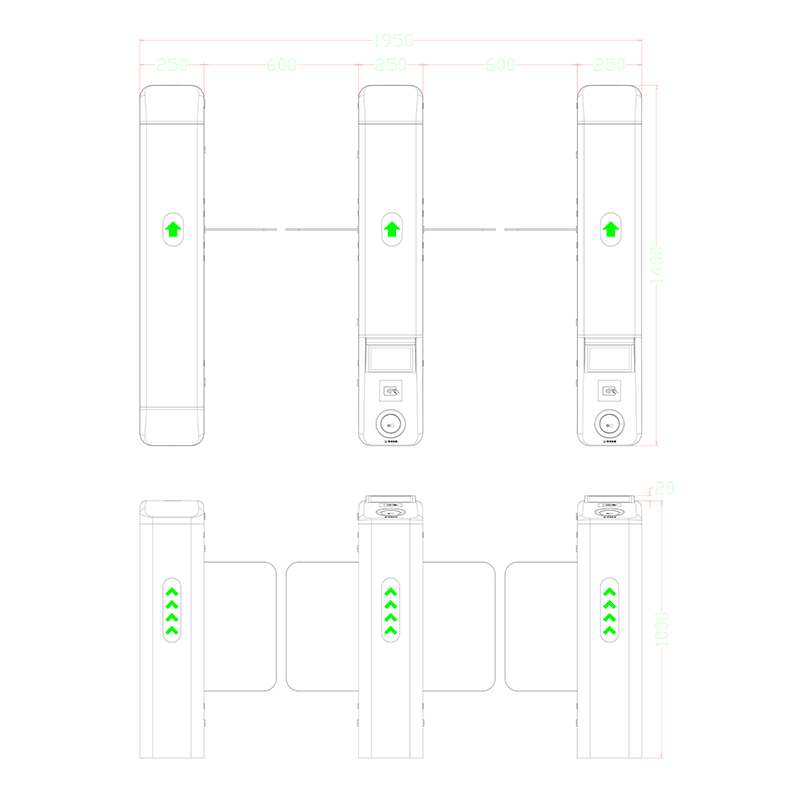

Overall Dimension

1. Dimensions: 1400mm long * 250mm wide * 1000mm high, 304 stainless steel, cover thickness 1.5mm. 2. Channel width: 600mm-800mm (transparent acrylic swing door). 3. Power supply: AC220V input, DC24V (1500mA) DC safety voltage drive. 4. Working temperature: -20℃~60℃. 5. Working humidity: ≤90%, no condensation. 6. Input interface: 12V level signal or 12V pulse signal with pulse width >100ms, driving current >10mA. 7. Passing speed: 25-35 people/minute. 8. Communication method: TCP/IP. 9. Direction indication: LED highlights indicate the passing direction. 10. Card reader interface: Wiegand interface, or 485/232 interface, supports multiple modes.
